Cellular Confinement System

Name: Cellular Confinement System
Brand: Paramount Materials - V
SKU: MMG-LSG-3
Price: 256.45 USD
Availability: InStock

$256.45

FREE SHIPPING

SKU MMG-LSG-3

Cell Depth:

Quantity

The cellular confinement system enhances pavement support by confining materials and preventing lateral movement under load. Acting as a stabilizer, the grid distributes the load across a wider area, increasing the pavement's load-bearing capacity. The LSG series eliminates the need for a gravel base due to the compaction within its cells. Simply place an approved geotextile under the grid before filling, reducing labor and material costs. A layer of non-woven geotextile fabric, like those recommended by DuPont, is required to prevent gravel from mixing with the ground, ensuring strength and drainage.

Available in 3", 4", and 6" depths.

FREE SHIPPING

Do you need a written quote? Submit a quote request >

Volume Pricing Available on Orders Over $5,000

FREE SHIPPING

Require a written quote?
Request Online >

Questions? Call (800) 748-5647

ADVANTAGES:

Heavy-Duty
Perforated Cell Design for Maximum Drainage
Reduces Mud
Provides Stability for Vehicular Traffic
Non-Leaching Material
HDPE Material with a 100 Year+ Lifespan

APPLICATIONS INCLUDE:

Porous Pavements • Overflow Parking areas • Access Roads • Fire Access Lanes • Boat Ramps • Parking Lots • Golf Cart Paths • Roadside Shoulder Reinforcement • Driveways • Ports & Marinas • RV Parking • Trails & Pathways • Pavement Base Support • Permeable Paver Support

PRODUCT INFORMATION

Series: LSG
Brand: Cell-Tek
Size: 8' x 22.5' Grid
Cell Depth: Various

PRODUCT SPECIFICATIONS

Download Product Spec Sheet >

Installation Guide >

Product Brochure >

Mud Management Installation Guide >

Mud Management Case Study >

MUD MANAGEMENT GRID SHIPPING TIME

All Grids and Accessories Ship for Free (standard ground, see map)

Expedited shipping only available on orders over $2,000

Call: (800) 748-5647 for pricing and ship times

Shipping estimates shown on the map pertain to this specific product only. Grid orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

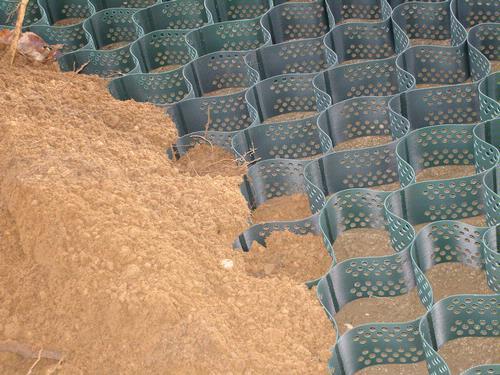

Fill With Gravel, Sand, Dirt or Grass

The LSG series grid can be filled with a variety of different infill types. You can build a reinforced grass driveway, strong gravel surface or a dirt area which is resistant to erosion. The possibilities are endless!

Capture.JPG__PID:458fabe2-72d2-49ef-a291-3e74a6fc493d

Capture.JPG__PID:08d3cb51-fd26-4501-b594-82bace21065d

No Gravel Base Required!

The LSG series does not require a gravel base. This is due to both the depth and amount of compaction which takes place within the confined cells. Simply lay an approved geotextile below the grid and fill. The result is a savings in both labor and material cost.

Fabric for Beneath LSG Geocell Grid (Required)

It is required that a layer of geotextile fabric is placed below the LSG grid to prevent the gravel from absorbing into the ground. The recommended DuPont fabrics are non-woven geotextiles which provides strength and excellent drainage.

View Fabric Options & Other LSG Accessories >

A06BDCE1-3048-71C2-17752713DFCB17A0.jpg__PID:720faf88-028b-4eb5-a2fd-62ecfc68ed18

LSG SERIES LOAD SUPPORT GRID geocells provide superior support to your pavement system. The system confines materials and prevents lateral movement away from the applied load. The stabilizer grid acts as a large mat, by spreading the load over an extended area while increasing the load bearing capacity of the pavement surface.

APPLICATIONS INCLUDE:

Porous Pavements
Overflow Parking Areas
Access Roads
Fire Access Lanes
Boat Ramps
Parking Lots
Golf Cart Paths
Roadside Shoulder Reinforcement
Driveways
Ports & Marinas
RV Parking
Trails & Pathways
Pavement Base Support
Permeable Paver Support

BENEFITS:

Reduce Base Thickness up to 50%
Reduce Subgrade Stress
Reduce Installation Cost

ENVIRONMENTAL BENEFITS:

Reduce Stormwater Runoff
Natural Recharging of Groundwater
Capture Airborne Pollutants
Safely Distributes Car Oil Leakage
Reduce Hot Surface Temperatures

STORMWATER STORAGE:

LSG-6 (6 inch cell depth) infilled with#57 stone with a 1" wearing layer canprovide 2.8" of rainwater storage.

EARN LEED BUILDING CREDITS:

Reduced Site Disturbance - Heat Island Effect
Recycled Material Content - Stormwater Management

Gravel

AGGREGATE PAVING
(NON-VEGETATED)

ACCESS ROADS
GRAVEL PARKING LOTS
PORTS & MARINAS
BOAT RAMPS
FIRE ACCESS LANES
RV PARKING

Gravel-Lok

BONDED AGGREGATE SURFACE

WALKWAYS & PATHS
PATIOS & COURTYARDS
GOLF COURSES
TREE PITS
HISTORICAL SITES

PAVERS

PAVER LOAD SUPPORT

PAVER BASE SUPPORT
DRIVEWAY BASE SUPPORT
RETAINING WALL SUPPORT
BASE REDUCTION SYSTEM

GRASS

GREEN PAVING (VEGETATED / TURF)

OVERFLOW PARKING
GREEN PARKING SPACES
GREEN ROOFS
VEGETATED GROUND COVER

Installation Video:

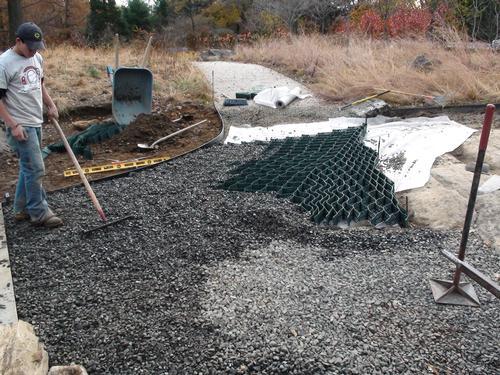

Gravel Driveway

Learn how to install the LSG Series Grid in a gravel driveway application

Installation Video:
Grass Reinforcement

Learn how to install the LSG Series Grid in a grass reinforcement application

Installation Video:
Connecting Grids

Learn how to connect the LSG Series Grids together

Installation Video:
Load Support for Paver Driveway

Learn how to install the LSG Series Grids in a load support application

Load Support

Geocellular Confinement takes infill materials and produces a stiff base by creating a semi-rigid slab. The system prevents the lateral displacement of infill materials which eliminates rutting and washboarding usually associated with gravel pavements. The system allows for a reduction in overall base thickness, as well as enabling subgrade materials to withstand more than 10 times the number of cyclic load applications, without the appearance of deflection when compared to unconfined aggregates. GCS allows for the use of lower quality infill materials in situations where quality aggregates are not readily available and helps to create pavements on soft soil subgrades. When it comes to load support in porous paving applications, Cell-Tek's LSG SERIES delivers the competitive advantage.

Capture.JPG__PID:70d1d4c7-186e-42ff-b827-aff0d90d1d2d

Single Cell

sg_section (2).jpg__PID:46ecce0f-ac7c-4ab6-95eb-0875124efcbe

Expanded Grid 8' x 22.5' (180 SF)

sg_expanded_drawing (1).jpg__PID:ce0fac7c-0ab6-45eb-8875-124efcbe8054

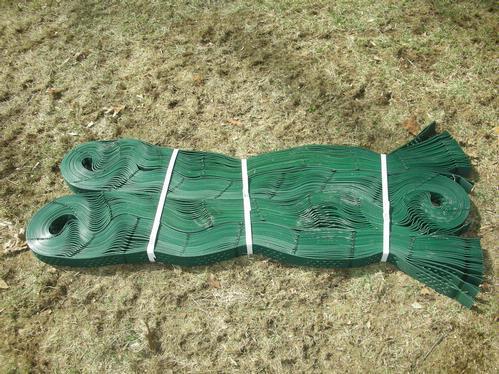

Collapsed Grid

sg_collapsed (1).jpg__PID:ac7c0ab6-55eb-4875-924e-fcbe8054e2b3

E7E2C2D3-5056-9F3E-72F290EA69C6BF5F.jpg__PID:0e42fff0-9cdb-42b0-a8b0-65799ff46a8d

1E9F34CE-5056-9F3E-72705C4D814BDB0C.jpg__PID:57e675b2-2bb5-44c1-9d62-cc7bc0574073

E7587DFD-5056-9F3E-7218205F8DA4887A.jpg__PID:db82b028-b065-499f-b46a-8d7ebf48130d

E799CCB3-5056-9F3E-727DA21DE8BC72F7.jpg__PID:9cdb82b0-28b0-4579-9ff4-6a8d7ebf4813

E76BDA67-5056-9F3E-7203D6966D873B61.jpg__PID:f09cdb82-b028-4065-b99f-f46a8d7ebf48

E73CCC9F-5056-9F3E-72AEF843340F105D.jpg__PID:fff09cdb-82b0-48b0-a579-9ff46a8d7ebf

E7EC10AC-5056-9F3E-72F9F94F20700ECF.jpg__PID:42fff09c-db82-4028-b065-799ff46a8d7e

E7DA33CB-5056-9F3E-720A3E30C77A4CDC.jpg__PID:1d0e42ff-f09c-4b82-b028-b065799ff46a

E7D1CDFE-5056-9F3E-72072D4F0D6F9BAE.jpg__PID:9b1d0e42-fff0-4cdb-82b0-28b065799ff4

E7C89D7F-5056-9F3E-7265065A885370F8.jpg__PID:4f9b1d0e-42ff-409c-9b82-b028b065799f

E7B19AF0-5056-9F3E-7249595B82D9B8FB.jpg__PID:794f9b1d-0e42-4ff0-9cdb-82b028b06579

E7A158C3-5056-9F3E-7217EFF223850A25.jpg__PID:73794f9b-1d0e-42ff-b09c-db82b028b065

E7A98E7C-5056-9F3E-72724DBB46C09A4A.jpg__PID:4073794f-9b1d-4e42-bff0-9cdb82b028b0

CD6FE160-3048-71C2-1797F462067BCA39.jpg__PID:57407379-4f9b-4d0e-82ff-f09cdb82b028

C9C10399-3048-71C2-1785531901E507D9.jpg__PID:c0574073-794f-4b1d-8e42-fff09cdb82b0

C9BF9A35-3048-71C2-17283921A062729E.jpg__PID:7bc05740-7379-4f9b-9d0e-42fff09cdb82

1510718B-3048-71C2-17E4C3155FA502AB.jpg__PID:cc7bc057-4073-494f-9b1d-0e42fff09cdb

1519BEB5-3048-71C2-176D7D2D72A5C28D.jpg__PID:62cc7bc0-5740-4379-8f9b-1d0e42fff09c

1514FB49-3048-71C2-172429D891CB0712.jpg__PID:1d62cc7b-c057-4073-b94f-9b1d0e42fff0

150D202E-3048-71C2-178D501C0150D29F.jpg__PID:c11d62cc-7bc0-4740-b379-4f9b1d0e42ff

PRODUCT	LSG-3	LSG-4	LSG-6
TYPE OF TRAFFIC	Cars & Pickup Trucks	Maintenance Trucks	Heavy Trucks & Fire Access
LOAD DETAILS	8000 lb. Axle Loads: 18kN	H10 Loading 40,000 lb. Axle Loads: 75kN	H20 Loading 80,000 lb. Axle Loads: 145kN
SUBGRADE CBR	>3% CBR Normal Hard Surface	>3% CBR Normal Hard Surface	>3% CBR Normal Hard Surface
SURFACE WEAR LAYER (overfill)	2"	2"	2"
TOTAL SYSTEM THICKNESS	5"	6"	8"
GEOTEXTILE (filtration & separation)	YES Nonwoven	YES Nonwoven	YES Nonwoven
EQUIVALENCY TO UNCONFINED GRAVEL	12" - 14"	16" - 20"	24" - 30"
WATER STORAGE	2"	2.4"	3.2"

PRODUCT	CELL DEPTH
LSG-3	3" (75mm)
LSG-4	4" (100mm)
LSG-6	6" (150mm)

Expanded Grid Dimensions	8' X 22.5' (215SF)
Nominal Cell Dimensions	9.9" x 9.9" x Cell Depth

PROPERTIES	TEST METHOD	TEST VALUE
Material Composition	ASTM D1505	Polymer; virgin HDPE Density: 0.9574g/cm3
Normal Sheet Thickness	ASTM D5199	1.33mm
Environmental Stress Cracking	ASTM D1693	3500 Hrs.
Stabilizer	ASTM E682	Hindered amine light stabilizer (HALS) 1.0% by weight

Short Term Seam Peel Strength	3" (75mm) 4" (100mm) 6" (150mm)	1065N 1542N 2170N
Long Term Seam Peel Strength	A 100mm (4 inch) wide section sample shall support a (160 lb.) load for a period of 7 days (168 hrs.) minimum in a temperature controlled environment undergoing a temperature change on a 1 hour cycle from ambient room temperature to (130F)
